Turbo Air LED Evaporator Coil (Freezer, Electric Defrost)

Turbo Air LED low profile unit coolers (evaporator coils) for walk-in freezers. Electric defrost, dual-speed EC fan motors and blue anti-corrosion fins, from 3,600 to 27,300 BTU/h. Pick a model and configuration below: the description, technical info and spec sheet update to match.

LED036BENXLED036BENMLED036BENCLED052BENXLED052BENMLED052BENCLED072BENXLED072BENMLED072BENCLED081BENXLED081BENMLED081BENCLED090BENXLED090BENMLED090BENCLED114BENMLED114BENCLED124BENXLED124BENMLED124BENCLED157BENXLED157BENMLED157BENCLED176BENXLED176BENMLED176BENCLED225BENXLED225BENMLED225BENCLED244BENXLED244BENMLED244BENCLED273BENXLED273BENMLED273BENC

Compare

Add to wishlist

Categories: Evaporating Coil, Refrigeration

Description
techincal info
Download

Description

Turbo Air LED036BENX

Turbo Air 3,600 BTU/h low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 1 EC fan motor at 6 FPI, 772 CFM. Approved for R448A / R449A; TXV mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV) factory mounted.

Turbo Air LED036BENM

Turbo Air 3,600 BTU/h low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 1 EC fan motor at 6 FPI, 772 CFM. Approved for R448A / R449A; TXV mounted, solenoid valve mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV) and liquid line solenoid valve factory mounted.

Turbo Air LED036BENC

Turbo Air 3,600 BTU/h low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 1 EC fan motor at 6 FPI, 772 CFM. Approved for R448A / R449A; TXV mounted, solenoid valve mounted, digital temperature controller mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV), liquid line solenoid valve and digital temperature controller factory mounted.

Turbo Air LED052BENX

Turbo Air 5,200 BTU/h low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 2 EC fan motors at 6 FPI, 1555 CFM. Approved for R448A / R449A; TXV mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV) factory mounted.

Turbo Air LED052BENM

Turbo Air 5,200 BTU/h unit cooler (evaporator coil), 208-230V/60Hz/1Ph, 2-fan EC motor design at 6 FPI. Electric Defrost for Freezer. Approved for R448A / R449A. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV) and liquid line solenoid valve factory mounted.

Turbo Air LED052BENC

Turbo Air 5,200 BTU/h low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 2 EC fan motors at 6 FPI, 1555 CFM. Approved for R448A / R449A; TXV mounted, solenoid valve mounted, digital temperature controller mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV), liquid line solenoid valve and digital temperature controller factory mounted.

Turbo Air LED072BENX

Turbo Air 7,200 BTU/h low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 2 EC fan motors at 6 FPI, 1544 CFM. Approved for R448A / R449A; TXV mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV) factory mounted.

Turbo Air LED072BENM

Turbo Air 7,200 BTU/h low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 2 EC fan motors at 6 FPI, 1544 CFM. Approved for R448A / R449A; TXV mounted, solenoid valve mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV) and liquid line solenoid valve factory mounted.

Turbo Air LED072BENC

Turbo Air 7,200 BTU/h low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 2 EC fan motors at 6 FPI, 1544 CFM. Approved for R448A / R449A; TXV mounted, solenoid valve mounted, digital temperature controller mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV), liquid line solenoid valve and digital temperature controller factory mounted.

Turbo Air LED081BENX

Turbo Air 8,100 BTU/h low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 2 EC fan motors at 6 FPI, 1544 CFM. Approved for R448A / R449A; TXV mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV) factory mounted.

Turbo Air LED081BENM

Turbo Air 8,100 BTU/h low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 2 EC fan motors at 6 FPI, 1544 CFM. Approved for R448A / R449A; TXV mounted, solenoid valve mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV) and liquid line solenoid valve factory mounted.

Turbo Air LED081BENC

Turbo Air 8,100 BTU/h low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 2 EC fan motors at 6 FPI, 1544 CFM. Approved for R448A / R449A; TXV mounted, solenoid valve mounted, digital temperature controller mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV), liquid line solenoid valve and digital temperature controller factory mounted.

Turbo Air LED090BENX

Turbo Air 9,000 BTU/h low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 3 EC fan motors at 6 FPI, 2333 CFM. Approved for R448A / R449A; TXV mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV) factory mounted.

Turbo Air LED090BENM

Turbo Air 9,000 BTU/h low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 3 EC fan motors at 6 FPI, 2333 CFM. Approved for R448A / R449A; TXV mounted, solenoid valve mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV) and liquid line solenoid valve factory mounted.

Turbo Air LED090BENC

Turbo Air 9,000 BTU/h low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 3 EC fan motors at 6 FPI, 2333 CFM. Approved for R448A / R449A; TXV mounted, solenoid valve mounted, digital temperature controller mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV), liquid line solenoid valve and digital temperature controller factory mounted.

Turbo Air LED114BENM

Turbo Air 11,400 BTU/h low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 3 EC fan motors at 6 FPI, 2316 CFM. Approved for R448A / R449A; TXV mounted, solenoid valve mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV) and liquid line solenoid valve factory mounted.

Turbo Air LED114BENC

Turbo Air 11,400 BTU/h low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 3 EC fan motors at 6 FPI, 2316 CFM. Approved for R448A / R449A; TXV mounted, solenoid valve mounted, digital temperature controller mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV), liquid line solenoid valve and digital temperature controller factory mounted.

Turbo Air LED124BENX

Turbo Air 12,400 BTU/h low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 4 EC fan motors at 6 FPI, 3111 CFM. Approved for R448A / R449A; TXV mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV) factory mounted.

Turbo Air LED124BENM

Turbo Air 12,400 BTU/h low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 4 EC fan motors at 6 FPI, 3111 CFM. Approved for R448A / R449A; TXV mounted, solenoid valve mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV) and liquid line solenoid valve factory mounted.

Turbo Air LED124BENC

Turbo Air 12,400 BTU/h low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 4 EC fan motors at 6 FPI, 3111 CFM. Approved for R448A / R449A; TXV mounted, solenoid valve mounted, digital temperature controller mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV), liquid line solenoid valve and digital temperature controller factory mounted.

Turbo Air LED157BENX

Turbo Air 15,700 BTU/h low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 4 EC fan motors at 6 FPI, 3088 CFM. Approved for R448A / R449A; TXV mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV) factory mounted.

Turbo Air LED157BENM

Turbo Air 15,700 BTU/h low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 4 EC fan motors at 6 FPI, 3088 CFM. Approved for R448A / R449A; TXV mounted, solenoid valve mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV) and liquid line solenoid valve factory mounted.

Turbo Air LED157BENC

Turbo Air 15,700 BTU/h low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 4 EC fan motors at 6 FPI, 3088 CFM. Approved for R448A / R449A; TXV mounted, solenoid valve mounted, digital temperature controller mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV), liquid line solenoid valve and digital temperature controller factory mounted.

Turbo Air LED176BENX

Turbo Air 17,600 BTU/h low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 4 EC fan motors at 6 FPI, 3088 CFM. Approved for R448A / R449A; TXV mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV) factory mounted.

Turbo Air LED176BENM

Turbo Air 17,600 BTU/h low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 4 EC fan motors at 6 FPI, 3088 CFM. Approved for R448A / R449A; TXV mounted, solenoid valve mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV) and liquid line solenoid valve factory mounted.

Turbo Air LED176BENC

Turbo Air 17,600 BTU/h low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 4 EC fan motors at 6 FPI, 3088 CFM. Approved for R448A / R449A; TXV mounted, solenoid valve mounted, digital temperature controller mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV), liquid line solenoid valve and digital temperature controller factory mounted.

Turbo Air LED225BENX

Turbo Air 22,500 BTU low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 5 EC fan motors at 6 FPI, 3860 CFM. Approved for R448A / R449A; TXV mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV) factory mounted.

Turbo Air LED225BENM

Turbo Air 22,500 BTU low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 5 EC fan motors at 6 FPI, 3860 CFM. Approved for R448A / R449A; TXV mounted, solenoid valve mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV) and liquid line solenoid valve factory mounted.

Turbo Air LED225BENC

Turbo Air 22,500 BTU low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 5 EC fan motors at 6 FPI, 3860 CFM. Approved for R448A / R449A; TXV mounted, solenoid valve mounted, digital temperature controller mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV), liquid line solenoid valve and digital temperature controller factory mounted.

Turbo Air LED244BENX

Turbo Air 24,400 BTU low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 6 EC fan motors at 6 FPI, 4632 CFM. Approved for R448A / R449A; TXV mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV) factory mounted.

Turbo Air LED244BENM

Turbo Air 24,400 BTU low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 6 EC fan motors at 6 FPI, 4632 CFM. Approved for R448A / R449A; TXV mounted, solenoid valve mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV) and liquid line solenoid valve factory mounted.

Turbo Air LED244BENC

Turbo Air 24,400 BTU low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 6 EC fan motors at 6 FPI, 4632 CFM. Approved for R448A / R449A; TXV mounted, solenoid valve mounted, digital temperature controller mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV), liquid line solenoid valve and digital temperature controller factory mounted.

Turbo Air LED273BENX

Turbo Air 27,300 BTU/h low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 6 EC fan motors at 6 FPI, 4632 CFM. Approved for R448A / R449A; TXV mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV) factory mounted.

Turbo Air LED273BENM

Turbo Air 27,300 BTU/h low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 6 EC fan motors at 6 FPI, 4632 CFM. Approved for R448A / R449A; TXV mounted, solenoid valve mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV) and liquid line solenoid valve factory mounted.

Turbo Air LED273BENC

Turbo Air 27,300 BTU/h low profile unit cooler, electric defrost, 208-230V/60Hz/1Ph. 6 EC fan motors at 6 FPI, 4632 CFM. Approved for R448A / R449A; TXV mounted, solenoid valve mounted, digital temperature controller mounted. Stocked at Easy Refrigeration Co. in Macon, GA. Call 470-610-0700 or email sales@easyrefrigeration.co for freight and lead time.

Configuration: R-448A / R-449A expansion valve (TXV), liquid line solenoid valve and digital temperature controller factory mounted.

About the Turbo Air LED Series

The LED series is Turbo Air’s low profile, electric defrost unit cooler for walk-in freezers and other low temperature boxes. Electric defrost heaters keep the coil clear of frost, a heater safety thermostat guards against over temperature, and dual-speed EC fan motors keep energy use down. Current LED models are approved for R-448A / R-449A and ship with the expansion valve factory mounted.

Features

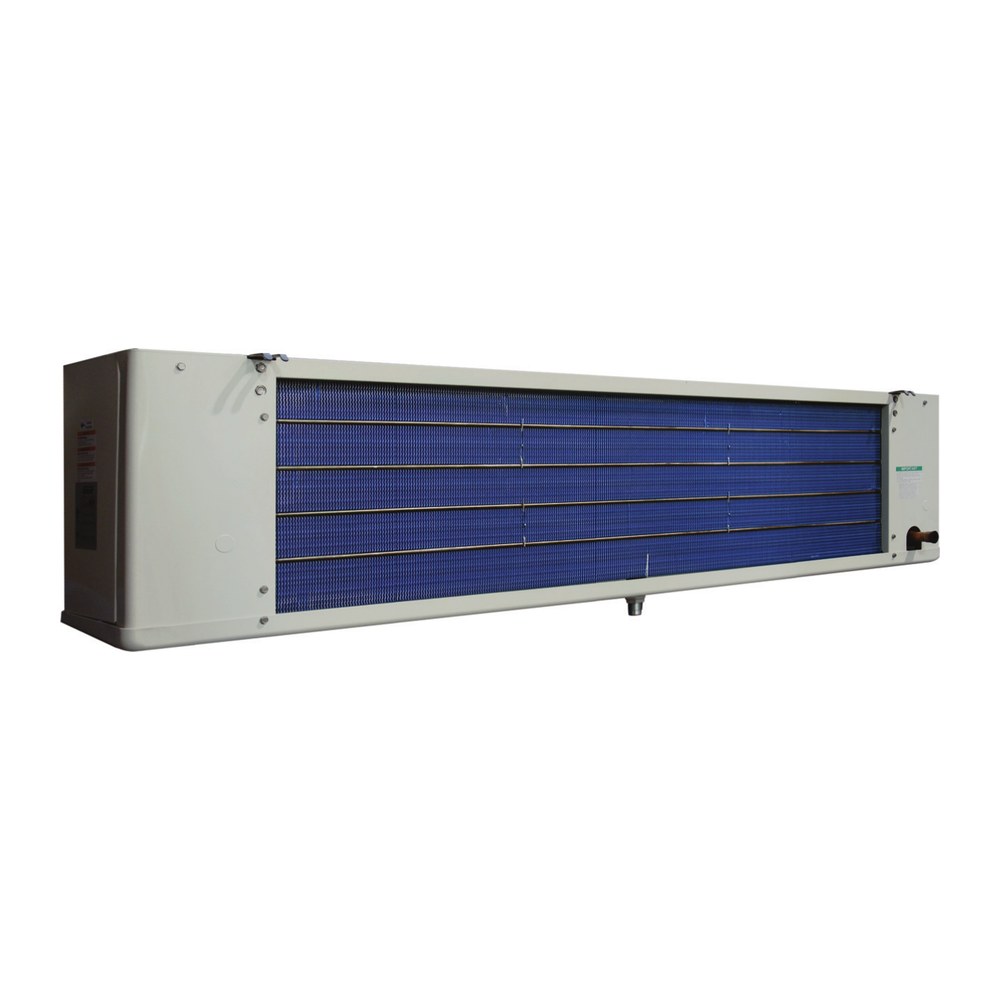

Blue anti-corrosion fins extend the life of the coil
Seamless inner-groove copper tube and corrugated fins increase heat transfer
Air-pass guard at the bottom of the coil improves heat exchange
Venturi-type distributor and precise orifice minimize pressure drop
Dual-speed EC fan motors for high energy efficiency
Spiral fan guards deliver cold air evenly; protruding fan placement reduces vibration and noise
Front cover opens for full service access, even in tight spaces
Stainless steel mounting hardware and bolts resist oxidation
Easy-to-replace electric defrost heaters
Heater safety thermostat opens automatically above 70°F

Configuration Options

NX: expansion valve (TXV) factory mounted
NM: expansion valve (TXV) and liquid line solenoid valve factory mounted
NC: expansion valve (TXV), solenoid valve and digital temperature controller factory mounted

These R-448A / R-449A versions replace the earlier R-404A OX and OM models.

techincal info

Turbo Air LED036BENX Technical Specifications

Model	LED036BENX
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV) factory mounted
Nominal Capacity	3,600 BTU/h
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	3,678 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	4,325 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	3,764 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	4,432 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	1 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	0.45 A / 25 W
Airflow	772 CFM
Fin Spacing	6 FPI
Defrost Heaters	1,020 W
Defrost Heater Amps	4.4 A (230/1/60), 2.6 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-AAA-Z" (Inlet: 3/8", Outlet: 1/2")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 5/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	32 lb / 15 kg
AWEF (R-448A / R-449A)	3.94
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED036BENM Technical Specifications

Model	LED036BENM
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV) and liquid line solenoid valve factory mounted
Nominal Capacity	3,600 BTU/h
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	3,678 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	4,325 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	3,764 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	4,432 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	1 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	0.45 A / 25 W
Airflow	772 CFM
Fin Spacing	6 FPI
Defrost Heaters	1,020 W
Defrost Heater Amps	4.4 A (230/1/60), 2.6 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-AAA-Z" (Inlet: 3/8", Outlet: 1/2") & LLSV "E3S130" (3/8")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 5/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	32 lb / 15 kg
AWEF (R-448A / R-449A)	3.94
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED036BENC Technical Specifications

Model	LED036BENC
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV), liquid line solenoid valve and digital temperature controller factory mounted
Nominal Capacity	3,600 BTU/h
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	3,678 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	4,325 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	3,764 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	4,432 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	1 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	0.45 A / 25 W
Airflow	772 CFM
Fin Spacing	6 FPI
Defrost Heaters	1,020 W
Defrost Heater Amps	4.4 A (230/1/60), 2.6 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-AAA-Z" (Inlet: 3/8", Outlet: 1/2") & LLSV "E3S130" (3/8")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 5/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	32 lb / 15 kg
AWEF (R-448A / R-449A)	3.94
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED052BENX Technical Specifications

Model	LED052BENX
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV) factory mounted
Nominal Capacity	5,200 BTU/h
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	5,247 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	6,183 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	5,351 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	6,312 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	2 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	0.90 A / 50 W
Airflow	1,555 CFM
Fin Spacing	6 FPI
Defrost Heaters	2,010 W
Defrost Heater Amps	8.7 A (230/1/60), 5.0 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-AA-Z" (Inlet: 3/8", Outlet: 1/2")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 5/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	48 lb / 22 kg
AWEF (R-448A / R-449A)	3.97
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED052BENM Technical Specifications

Model	LED052BENM
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV) and liquid line solenoid valve factory mounted
Nominal Capacity	5,200 BTU/h
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	5,247 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	6,183 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	5,351 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	6,312 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	2 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	0.90 A / 50 W
Airflow	1,555 CFM
Fin Spacing	6 FPI
Defrost Heaters	2,010 W
Defrost Heater Amps	8.7 A (230/1/60), 5.0 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-AA-Z" (Inlet: 3/8", Outlet: 1/2") & LLSV "E3S130" (3/8")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 5/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	48 lb / 22 kg
AWEF (R-448A / R-449A)	3.97
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED052BENC Technical Specifications

Model	LED052BENC
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV), liquid line solenoid valve and digital temperature controller factory mounted
Nominal Capacity	5,200 BTU/h
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	5,247 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	6,183 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	5,351 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	6,312 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	2 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	0.90 A / 50 W
Airflow	1,555 CFM
Fin Spacing	6 FPI
Defrost Heaters	2,010 W
Defrost Heater Amps	8.7 A (230/1/60), 5.0 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-AA-Z" (Inlet: 3/8", Outlet: 1/2") & LLSV "E3S130" (3/8")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 5/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	48 lb / 22 kg
AWEF (R-448A / R-449A)	3.97
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED072BENX Technical Specifications

Model	LED072BENX
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV) factory mounted
Nominal Capacity	7,200 BTU/h
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	7,244 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	8,546 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	7,369 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	8,703 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	2 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	0.90 A / 50 W
Airflow	1,544 CFM
Fin Spacing	6 FPI
Defrost Heaters	2,010 W
Defrost Heater Amps	8.7 A (230/1/60), 5.0 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-AA-Z" (Inlet: 3/8", Outlet: 1/2")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 5/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	52 lb / 24 kg
AWEF (R-448A / R-449A)	3.99
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED072BENM Technical Specifications

Model	LED072BENM
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV) and liquid line solenoid valve factory mounted
Nominal Capacity	7,200 BTU/h
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	7,244 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	8,546 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	7,369 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	8,703 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	2 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	0.90 A / 50 W
Airflow	1,544 CFM
Fin Spacing	6 FPI
Defrost Heaters	2,010 W
Defrost Heater Amps	8.7 A (230/1/60), 5.0 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-AA-Z" (Inlet: 3/8", Outlet: 1/2") & LLSV "E3S130" (3/8")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 5/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	52 lb / 24 kg
AWEF (R-448A / R-449A)	3.99
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED072BENC Technical Specifications

Model	LED072BENC
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV), liquid line solenoid valve and digital temperature controller factory mounted
Nominal Capacity	7,200 BTU/h
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	7,244 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	8,546 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	7,369 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	8,703 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	2 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	0.90 A / 50 W
Airflow	1,544 CFM
Fin Spacing	6 FPI
Defrost Heaters	2,010 W
Defrost Heater Amps	8.7 A (230/1/60), 5.0 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-AA-Z" (Inlet: 3/8", Outlet: 1/2") & LLSV "E3S130" (3/8")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 5/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	52 lb / 24 kg
AWEF (R-448A / R-449A)	3.99
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED081BENX Technical Specifications

Model	LED081BENX
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV) factory mounted
Nominal Capacity	8,100 BTU/h
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	8,181 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	9,657 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	8,313 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	9,823 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	2 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	0.90 A / 50 W
Airflow	1,544 CFM
Fin Spacing	6 FPI
Defrost Heaters	2,010 W
Defrost Heater Amps	8.7 A (230/1/60), 5.0 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-AA-Z" (Inlet: 3/8", Outlet: 1/2")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 7/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	53 lb / 24 kg
AWEF (R-448A / R-449A)	4.00
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED081BENM Technical Specifications

Model	LED081BENM
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV) and liquid line solenoid valve factory mounted
Nominal Capacity	8,100 BTU/h
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	8,181 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	9,657 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	8,313 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	9,823 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	2 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	0.90 A / 50 W
Airflow	1,544 CFM
Fin Spacing	6 FPI
Defrost Heaters	2,010 W
Defrost Heater Amps	8.7 A (230/1/60), 5.0 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-AA-Z" (Inlet: 3/8", Outlet: 1/2") & LLSV "E3S130" (3/8")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 7/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	53 lb / 24 kg
AWEF (R-448A / R-449A)	4.00
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED081BENC Technical Specifications

Model	LED081BENC
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV), liquid line solenoid valve and digital temperature controller factory mounted
Nominal Capacity	8,100 BTU/h
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	8,181 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	9,657 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	8,313 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	9,823 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	2 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	0.90 A / 50 W
Airflow	1,544 CFM
Fin Spacing	6 FPI
Defrost Heaters	2,010 W
Defrost Heater Amps	8.7 A (230/1/60), 5.0 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-AA-Z" (Inlet: 3/8", Outlet: 1/2") & LLSV "E3S130" (3/8")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 7/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	53 lb / 24 kg
AWEF (R-448A / R-449A)	4.00
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED090BENX Technical Specifications

Model	LED090BENX
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV) factory mounted
Nominal Capacity	9,000 BTU/h
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	9,027 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	10,663 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	9,161 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	10,831 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	3 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	1.35 A / 75 W
Airflow	2,333 CFM
Fin Spacing	6 FPI
Defrost Heaters	3,000 W
Defrost Heater Amps	13.0 A (230/1/60), 7.5 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-A-Z" (Inlet: 3/8", Outlet: 1/2")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 7/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	67 lb / 31 kg
AWEF (R-448A / R-449A)	4.01
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED090BENM Technical Specifications

Model	LED090BENM
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV) and liquid line solenoid valve factory mounted
Nominal Capacity	9,000 BTU/h
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	9,027 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	10,663 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	9,161 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	10,831 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	3 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	1.35 A / 75 W
Airflow	2,333 CFM
Fin Spacing	6 FPI
Defrost Heaters	3,000 W
Defrost Heater Amps	13.0 A (230/1/60), 7.5 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-A-Z" (Inlet: 3/8", Outlet: 1/2") & LLSV "E3S130" (3/8")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 7/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	67 lb / 31 kg
AWEF (R-448A / R-449A)	4.01
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED090BENC Technical Specifications

Model	LED090BENC
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV), liquid line solenoid valve and digital temperature controller factory mounted
Nominal Capacity	9,000 BTU/h
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	9,027 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	10,663 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	9,161 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	10,831 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	3 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	1.35 A / 75 W
Airflow	2,333 CFM
Fin Spacing	6 FPI
Defrost Heaters	3,000 W
Defrost Heater Amps	13.0 A (230/1/60), 7.5 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-A-Z" (Inlet: 3/8", Outlet: 1/2") & LLSV "E3S130" (3/8")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 7/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	67 lb / 31 kg
AWEF (R-448A / R-449A)	4.01
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED114BENM Technical Specifications

Model	LED114BENM
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV) and liquid line solenoid valve factory mounted
Nominal Capacity	11,400 BTU/h
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	11,431 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	13,513 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	11,587 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	13,708 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	3 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	1.35 A / 75 W
Airflow	2,316 CFM
Fin Spacing	6 FPI
Defrost Heaters	3,000 W
Defrost Heater Amps	13.0 A (230/1/60), 7.5 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-A-Z" (Inlet: 3/8", Outlet: 1/2") & LLSV "E3S130" (3/8")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 7/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	73 lb / 33 kg
AWEF (R-448A / R-449A)	4.04
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED114BENC Technical Specifications

Model	LED114BENC
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV), liquid line solenoid valve and digital temperature controller factory mounted
Nominal Capacity	11,400 BTU/h
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	11,431 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	13,513 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	11,587 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	13,708 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	3 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	1.35 A / 75 W
Airflow	2,316 CFM
Fin Spacing	6 FPI
Defrost Heaters	3,000 W
Defrost Heater Amps	13.0 A (230/1/60), 7.5 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-A-Z" (Inlet: 3/8", Outlet: 1/2") & LLSV "E3S130" (3/8")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 7/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	73 lb / 33 kg
AWEF (R-448A / R-449A)	4.04
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED124BENX Technical Specifications

Model	LED124BENX
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV) factory mounted
Nominal Capacity	12,400 BTU/h
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	12,454 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	14,731 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	12,608 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	14,924 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	4 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	1.80 A / 100 W
Airflow	3,111 CFM
Fin Spacing	6 FPI
Defrost Heaters	3,900 W
Defrost Heater Amps	17.0 A (230/1/60), 9.8 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-A-Z" (Inlet: 3/8", Outlet: 1/2")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 7/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	86 lb / 39 kg
AWEF (R-448A / R-449A)	4.05
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED124BENM Technical Specifications

Model	LED124BENM
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV) and liquid line solenoid valve factory mounted
Nominal Capacity	12,400 BTU/h
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	12,454 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	14,731 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	12,608 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	14,924 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	4 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	1.80 A / 100 W
Airflow	3,111 CFM
Fin Spacing	6 FPI
Defrost Heaters	3,900 W
Defrost Heater Amps	17.0 A (230/1/60), 9.8 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-A-Z" (Inlet: 3/8", Outlet: 1/2") & LLSV "E3S130" (3/8")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 7/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	86 lb / 39 kg
AWEF (R-448A / R-449A)	4.05
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED124BENC Technical Specifications

Model	LED124BENC
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV), liquid line solenoid valve and digital temperature controller factory mounted
Nominal Capacity	12,400 BTU/h
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	12,454 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	14,731 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	12,608 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	14,924 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	4 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	1.80 A / 100 W
Airflow	3,111 CFM
Fin Spacing	6 FPI
Defrost Heaters	3,900 W
Defrost Heater Amps	17.0 A (230/1/60), 9.8 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-A-Z" (Inlet: 3/8", Outlet: 1/2") & LLSV "E3S130" (3/8")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 7/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	86 lb / 39 kg
AWEF (R-448A / R-449A)	4.05
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED157BENX Technical Specifications

Model	LED157BENX
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV) factory mounted
Nominal Capacity	15,700 BTU/h
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	15,723 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	18,610 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	15,901 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	18,832 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	4 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	1.80 A / 100 W
Airflow	3,088 CFM
Fin Spacing	6 FPI
Defrost Heaters	3,900 W
Defrost Heater Amps	17.0 A (230/1/60), 9.8 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-A-Z" (Inlet: 3/8", Outlet: 1/2")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 1-1/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	93 lb / 42 kg
AWEF (R-448A / R-449A)	4.09
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED157BENM Technical Specifications

Model	LED157BENM
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV) and liquid line solenoid valve factory mounted
Nominal Capacity	15,700 BTU/h
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	15,723 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	18,610 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	15,901 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	18,832 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	4 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	1.80 A / 100 W
Airflow	3,088 CFM
Fin Spacing	6 FPI
Defrost Heaters	3,900 W
Defrost Heater Amps	17.0 A (230/1/60), 9.8 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-A-Z" (Inlet: 3/8", Outlet: 1/2") & LLSV "E5S130" (3/8")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 1-1/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	93 lb / 42 kg
AWEF (R-448A / R-449A)	4.09
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED157BENC Technical Specifications

Model	LED157BENC
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV), liquid line solenoid valve and digital temperature controller factory mounted
Nominal Capacity	15,700 BTU/h
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	15,723 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	18,610 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	15,901 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	18,832 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	4 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	1.80 A / 100 W
Airflow	3,088 CFM
Fin Spacing	6 FPI
Defrost Heaters	3,900 W
Defrost Heater Amps	17.0 A (230/1/60), 9.8 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-A-Z" (Inlet: 3/8", Outlet: 1/2") & LLSV "E5S130" (3/8")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 1-1/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	93 lb / 42 kg
AWEF (R-448A / R-449A)	4.09
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED176BENX Technical Specifications

Model	LED176BENX
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV) factory mounted
Nominal Capacity	17,600 BTU/h
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	17,657 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	20,907 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	17,842 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	21,139 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	4 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	1.80 A / 100 W
Airflow	3,088 CFM
Fin Spacing	6 FPI
Defrost Heaters	3,900 W
Defrost Heater Amps	17.0 A (230/1/60), 9.8 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-A-Z" (Inlet: 3/8", Outlet: 1/2")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 1-1/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	95 lb / 43 kg
AWEF (R-448A / R-449A)	4.11
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED176BENM Technical Specifications

Model	LED176BENM
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV) and liquid line solenoid valve factory mounted
Nominal Capacity	17,600 BTU/h
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	17,657 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	20,907 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	17,842 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	21,139 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	4 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	1.80 A / 100 W
Airflow	3,088 CFM
Fin Spacing	6 FPI
Defrost Heaters	3,900 W
Defrost Heater Amps	17.0 A (230/1/60), 9.8 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-A-Z" (Inlet: 3/8", Outlet: 1/2") & LLSV "E5S130" (3/8")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 1-1/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	95 lb / 43 kg
AWEF (R-448A / R-449A)	4.11
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED176BENC Technical Specifications

Model	LED176BENC
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV), liquid line solenoid valve and digital temperature controller factory mounted
Nominal Capacity	17,600 BTU/h
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	17,657 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	20,907 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	17,842 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	21,139 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	4 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	1.80 A / 100 W
Airflow	3,088 CFM
Fin Spacing	6 FPI
Defrost Heaters	3,900 W
Defrost Heater Amps	17.0 A (230/1/60), 9.8 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-A-Z" (Inlet: 3/8", Outlet: 1/2") & LLSV "E5S130" (3/8")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 1-1/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	95 lb / 43 kg
AWEF (R-448A / R-449A)	4.11
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED225BENX Technical Specifications

Model	LED225BENX
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV) factory mounted
Nominal Capacity	22,500 BTU
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	22,509 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	26,672 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	22,711 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	26,926 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	5 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	2.25 A / 125 W
Airflow	3,860 CFM
Fin Spacing	6 FPI
Defrost Heaters	4,800 W
Defrost Heater Amps	20.9 A (230/1/60), 12.0 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-B-Z" (Inlet: 3/8", Outlet: 1/2")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 1-1/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	116 lb / 52 kg
AWEF (R-448A / R-449A)	4.15
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED225BENM Technical Specifications

Model	LED225BENM
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV) and liquid line solenoid valve factory mounted
Nominal Capacity	22,500 BTU
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	22,509 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	26,672 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	22,711 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	26,926 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	5 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	2.25 A / 125 W
Airflow	3,860 CFM
Fin Spacing	6 FPI
Defrost Heaters	4,800 W
Defrost Heater Amps	20.9 A (230/1/60), 12.0 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-B-Z" (Inlet: 3/8", Outlet: 1/2") & LLSV "E5S130" (3/8")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 1-1/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	116 lb / 52 kg
AWEF (R-448A / R-449A)	4.15
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED225BENC Technical Specifications

Model	LED225BENC
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV), liquid line solenoid valve and digital temperature controller factory mounted
Nominal Capacity	22,500 BTU
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	22,509 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	26,672 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	22,711 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	26,926 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	5 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	2.25 A / 125 W
Airflow	3,860 CFM
Fin Spacing	6 FPI
Defrost Heaters	4,800 W
Defrost Heater Amps	20.9 A (230/1/60), 12.0 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-B-Z" (Inlet: 3/8", Outlet: 1/2") & LLSV "E5S130" (3/8")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 1-1/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	116 lb / 52 kg
AWEF (R-448A / R-449A)	4.15
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED244BENX Technical Specifications

Model	LED244BENX
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV) factory mounted
Nominal Capacity	24,400 BTU
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	24,456 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	28,986 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	24,664 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	29,248 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	6 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	2.70 A / 150 W
Airflow	4,632 CFM
Fin Spacing	6 FPI
Defrost Heaters	6,000 W
Defrost Heater Amps	26.1 A (230/1/60), 15.1 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-B-Z" (Inlet: 3/8", Outlet: 1/2")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 1-1/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	134 lb / 61 kg
AWEF (R-448A / R-449A)	4.15
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED244BENM Technical Specifications

Model	LED244BENM
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV) and liquid line solenoid valve factory mounted
Nominal Capacity	24,400 BTU
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	24,456 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	28,986 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	24,664 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	29,248 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	6 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	2.70 A / 150 W
Airflow	4,632 CFM
Fin Spacing	6 FPI
Defrost Heaters	6,000 W
Defrost Heater Amps	26.1 A (230/1/60), 15.1 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-B-Z" (Inlet: 3/8", Outlet: 1/2") & LLSV "E5S130" (3/8")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 1-1/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	134 lb / 61 kg
AWEF (R-448A / R-449A)	4.15
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED244BENC Technical Specifications

Model	LED244BENC
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV), liquid line solenoid valve and digital temperature controller factory mounted
Nominal Capacity	24,400 BTU
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	24,456 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	28,986 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	24,664 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	29,248 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	6 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	2.70 A / 150 W
Airflow	4,632 CFM
Fin Spacing	6 FPI
Defrost Heaters	6,000 W
Defrost Heater Amps	26.1 A (230/1/60), 15.1 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-B-Z" (Inlet: 3/8", Outlet: 1/2") & LLSV "E5S130" (3/8")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 1-1/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	134 lb / 61 kg
AWEF (R-448A / R-449A)	4.15
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED273BENX Technical Specifications

Model	LED273BENX
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV) factory mounted
Nominal Capacity	27,300 BTU/h
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	27,392 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	32,478 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	27,609 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	32,750 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	6 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	2.70 A / 150 W
Airflow	4,632 CFM
Fin Spacing	6 FPI
Defrost Heaters	6,000 W
Defrost Heater Amps	26.1 A (230/1/60), 15.1 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-C-Z" (Inlet: 3/8", Outlet: 1/2")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 1-1/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	137 lb / 62 kg
AWEF (R-448A / R-449A)	4.15
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED273BENM Technical Specifications

Model	LED273BENM
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV) and liquid line solenoid valve factory mounted
Nominal Capacity	27,300 BTU/h
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	27,392 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	32,478 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	27,609 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	32,750 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	6 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	2.70 A / 150 W
Airflow	4,632 CFM
Fin Spacing	6 FPI
Defrost Heaters	6,000 W
Defrost Heater Amps	26.1 A (230/1/60), 15.1 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-C-Z" (Inlet: 3/8", Outlet: 1/2") & LLSV "E6S140" (1/2")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 1-1/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	137 lb / 62 kg
AWEF (R-448A / R-449A)	4.15
Warranty	1-year fan motor and parts (USA only)

Turbo Air LED273BENC Technical Specifications

Model	LED273BENC
Brand	Turbo Air
Product Line	LED Low Profile Unit Cooler
Application	Walk-in freezer (low temperature), electric defrost
Configuration	R-448A / R-449A expansion valve (TXV), liquid line solenoid valve and digital temperature controller factory mounted
Nominal Capacity	27,300 BTU/h
Capacity, R-448A / R-449A (10°F TD, -20°F SST)	27,392 BTU/h
Capacity, R-448A / R-449A (12°F TD, -22°F SST)	32,478 BTU/h
Capacity, R-404A (10°F TD, -20°F SST)	27,609 BTU/h
Capacity, R-404A (12°F TD, -22°F SST)	32,750 BTU/h
Power Supply	208-230V/60Hz/1Ph
Fans	6 x EC motor (dual speed), 1/25 HP each
Fan Motor Total Amps / Watts	2.70 A / 150 W
Airflow	4,632 CFM
Fin Spacing	6 FPI
Defrost Heaters	6,000 W
Defrost Heater Amps	26.1 A (230/1/60), 15.1 A (230/3/60)
Factory-Mounted Valves	R448A/R449A TXV "SBFDE-C-Z" (Inlet: 3/8", Outlet: 1/2") & LLSV "E6S140" (1/2")
Refrigerant	R-448A / R-449A (also rated for R-404A)
Connections	Coil inlet 1/2" OD, suction 1-1/8" ID, equalizer 1/4" OD, drain 3/4" MPT
Approx. Net Weight	137 lb / 62 kg
AWEF (R-448A / R-449A)	4.15
Warranty	1-year fan motor and parts (USA only)

Download

Turbo Air LED036BE Spec Sheet

Download the Turbo Air LED036BE cut sheet (PDF)

Capacity ratings, electrical data, connection sizes and dimensional drawings for the LED036BE unit cooler. Need help sizing a coil for your box? Call 470-610-0700 or email sales@easyrefrigeration.co.

Turbo Air LED052BE Spec Sheet

Download the Turbo Air LED052BE cut sheet (PDF)

Capacity ratings, electrical data, connection sizes and dimensional drawings for the LED052BE unit cooler. Need help sizing a coil for your box? Call 470-610-0700 or email sales@easyrefrigeration.co.

Turbo Air LED072BE Spec Sheet

Download the Turbo Air LED072BE cut sheet (PDF)

Capacity ratings, electrical data, connection sizes and dimensional drawings for the LED072BE unit cooler. Need help sizing a coil for your box? Call 470-610-0700 or email sales@easyrefrigeration.co.

Turbo Air LED081BE Spec Sheet

Download the Turbo Air LED081BE cut sheet (PDF)

Capacity ratings, electrical data, connection sizes and dimensional drawings for the LED081BE unit cooler. Need help sizing a coil for your box? Call 470-610-0700 or email sales@easyrefrigeration.co.

Turbo Air LED090BE Spec Sheet

Download the Turbo Air LED090BE cut sheet (PDF)

Capacity ratings, electrical data, connection sizes and dimensional drawings for the LED090BE unit cooler. Need help sizing a coil for your box? Call 470-610-0700 or email sales@easyrefrigeration.co.

Turbo Air LED114BE Spec Sheet

Download the Turbo Air LED114BE cut sheet (PDF)

Capacity ratings, electrical data, connection sizes and dimensional drawings for the LED114BE unit cooler. Need help sizing a coil for your box? Call 470-610-0700 or email sales@easyrefrigeration.co.

Turbo Air LED124BE Spec Sheet

Download the Turbo Air LED124BE cut sheet (PDF)

Capacity ratings, electrical data, connection sizes and dimensional drawings for the LED124BE unit cooler. Need help sizing a coil for your box? Call 470-610-0700 or email sales@easyrefrigeration.co.

Turbo Air LED157BE Spec Sheet

Download the Turbo Air LED157BE cut sheet (PDF)

Capacity ratings, electrical data, connection sizes and dimensional drawings for the LED157BE unit cooler. Need help sizing a coil for your box? Call 470-610-0700 or email sales@easyrefrigeration.co.

Turbo Air LED176BE Spec Sheet

Download the Turbo Air LED176BE cut sheet (PDF)

Capacity ratings, electrical data, connection sizes and dimensional drawings for the LED176BE unit cooler. Need help sizing a coil for your box? Call 470-610-0700 or email sales@easyrefrigeration.co.

Turbo Air LED225BE Spec Sheet

Download the Turbo Air LED225BE cut sheet (PDF)

Capacity ratings, electrical data, connection sizes and dimensional drawings for the LED225BE unit cooler. Need help sizing a coil for your box? Call 470-610-0700 or email sales@easyrefrigeration.co.

Turbo Air LED244BE Spec Sheet

Download the Turbo Air LED244BE cut sheet (PDF)

Capacity ratings, electrical data, connection sizes and dimensional drawings for the LED244BE unit cooler. Need help sizing a coil for your box? Call 470-610-0700 or email sales@easyrefrigeration.co.

Turbo Air LED273BE Spec Sheet

Download the Turbo Air LED273BE cut sheet (PDF)

Capacity ratings, electrical data, connection sizes and dimensional drawings for the LED273BE unit cooler. Need help sizing a coil for your box? Call 470-610-0700 or email sales@easyrefrigeration.co.
